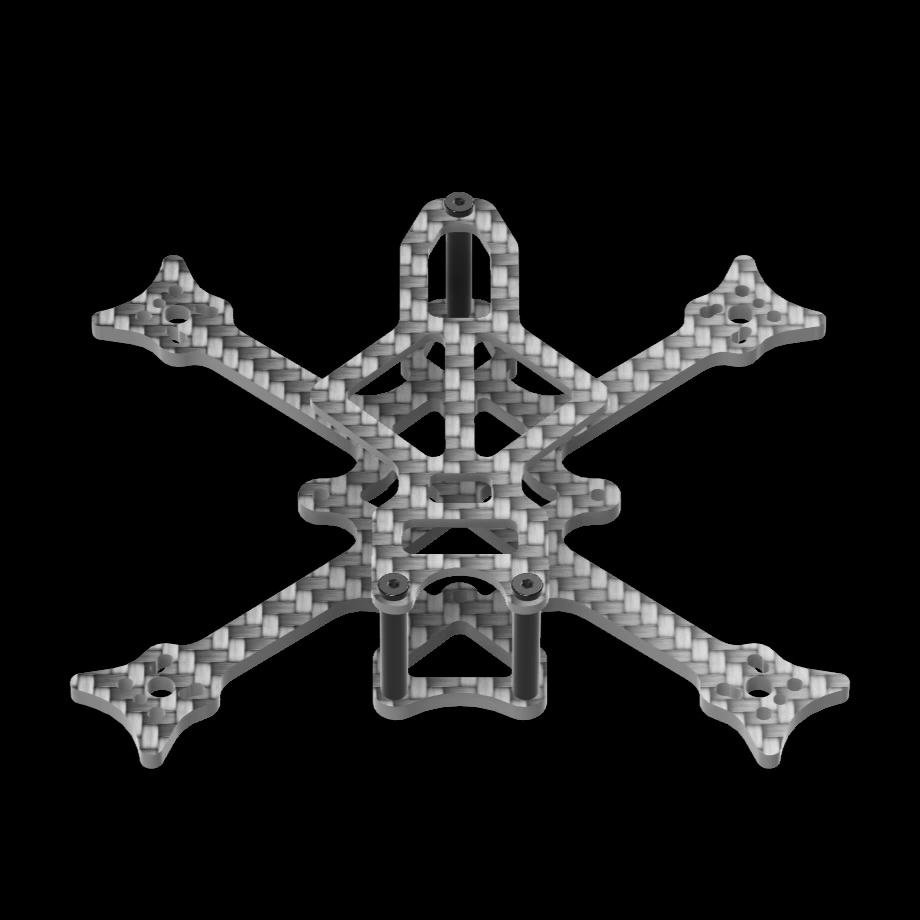

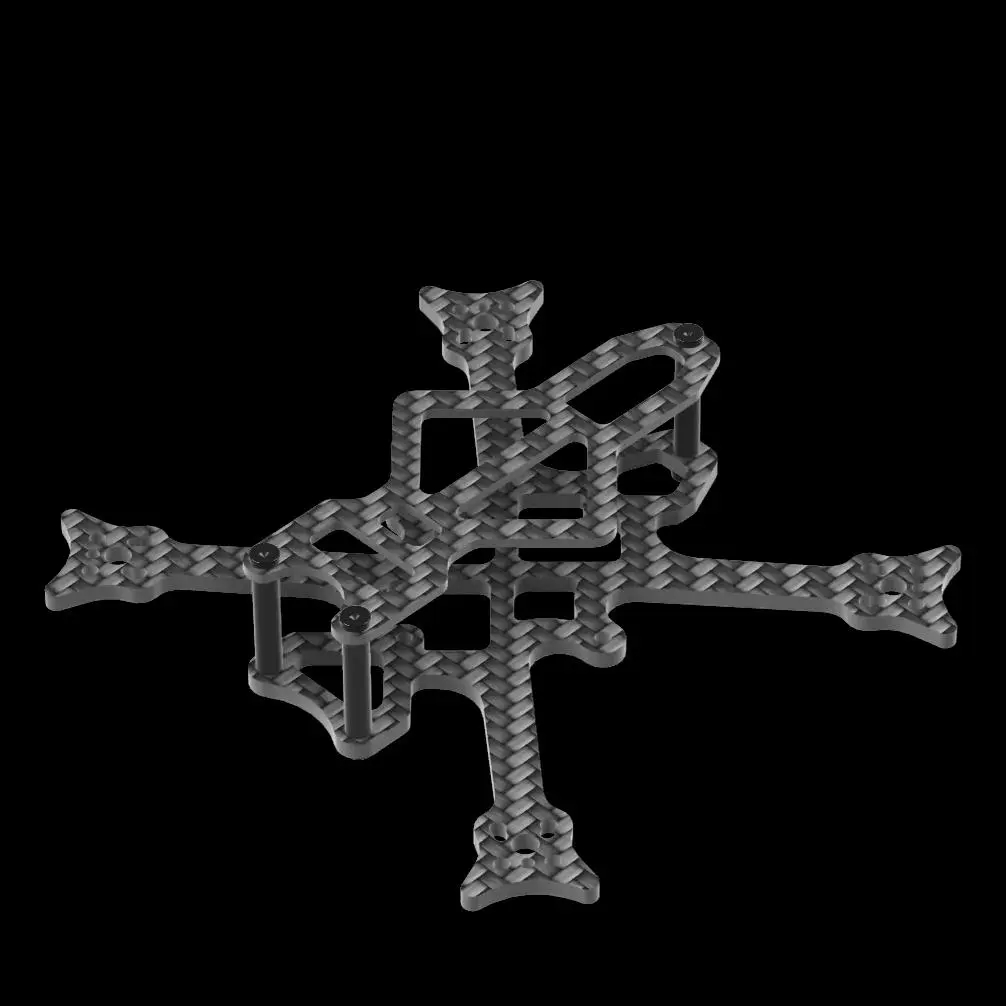

Maxx Frames M2 2 inch Freestyle Frame
Freestyle fun in a tiny package. Send it, bash it and smash it. Designed to take a beating. The M2 Frame from Maxx Frames has finally landed at the BMF!
$26.99
Specifications:
- 1.5mm Top Plate
- 2.5mm Bottom Plate
- 3 or 4 hole Motor Mounting
Hardware:
- 3 x 17mm M2 x 3.5mm Aluminum Standoffs
- 6 x 6mm M2 frame screws
- 4 x 18mm M2 stack screws
- 8 x M2 nuts

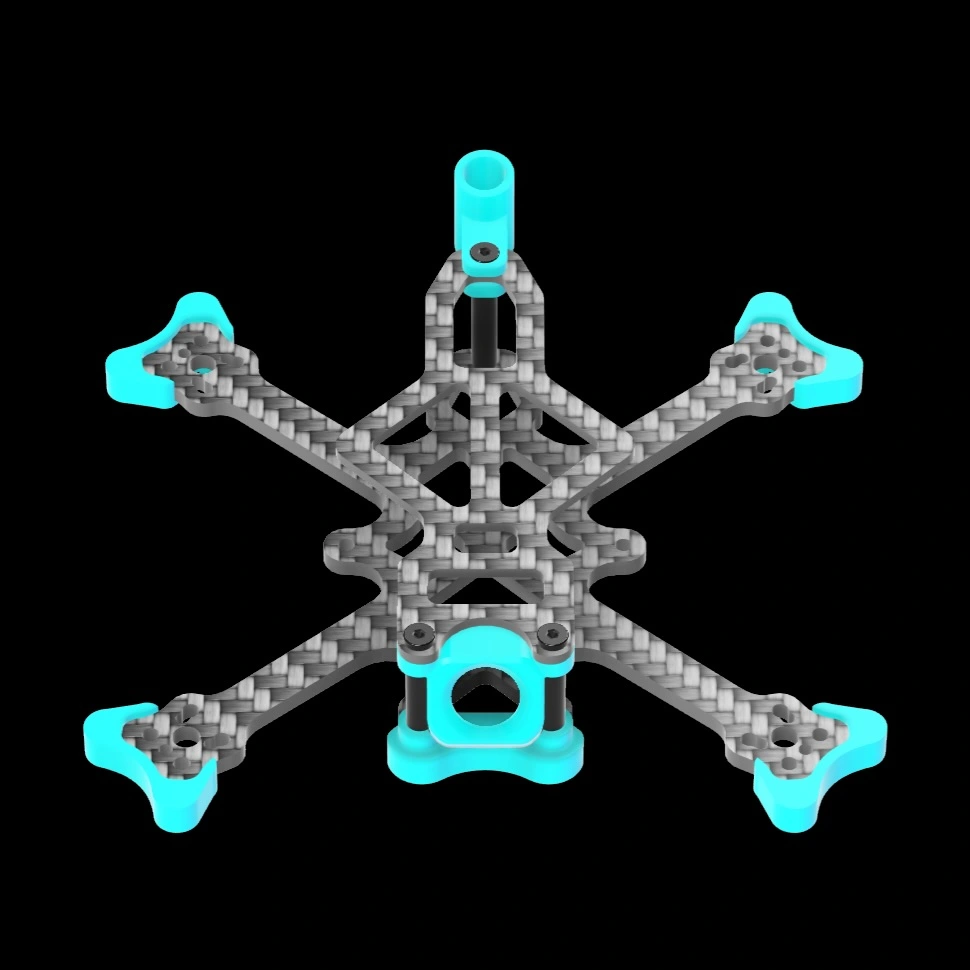

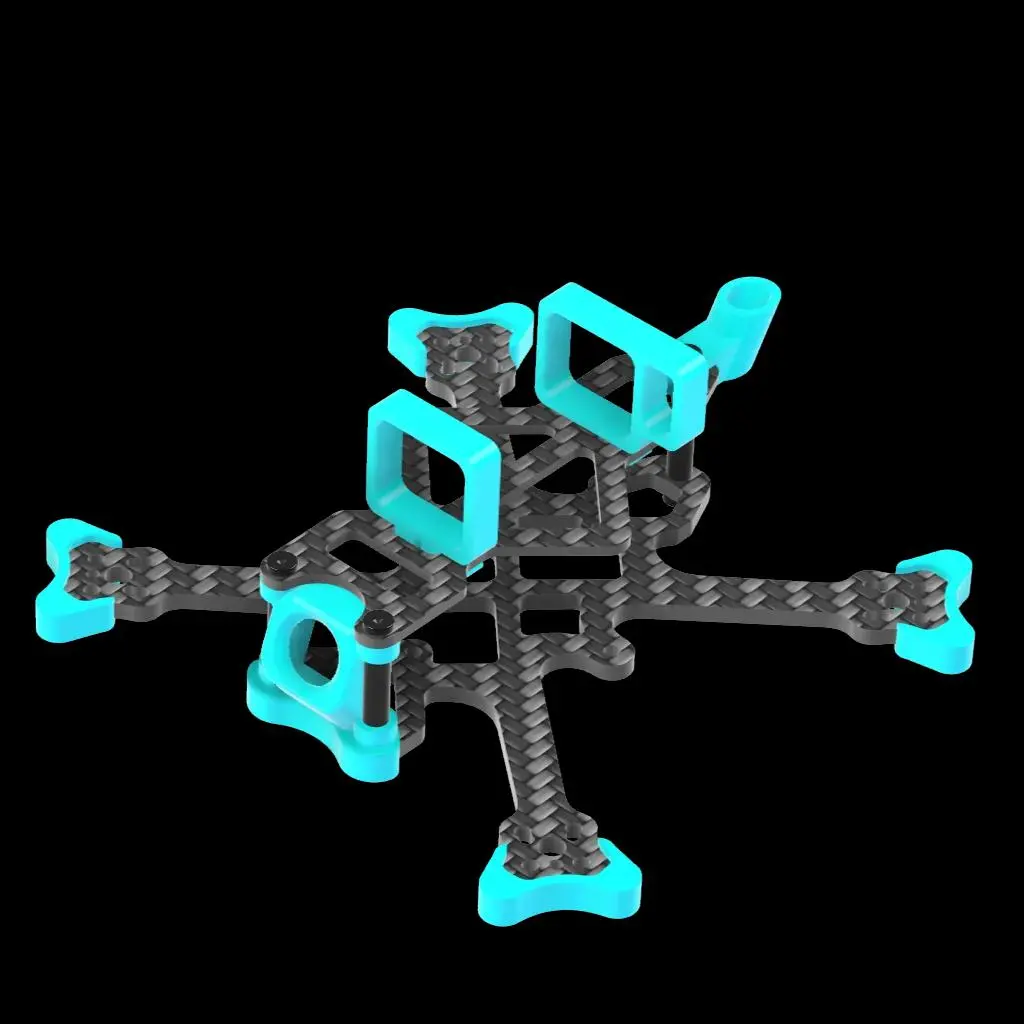

TPU parts:
- Not included in this kit version (parts available at thingiverse.com )
Included:
- Maxx Frame M2 Freestyle Frame Kit (No TPU parts) x 1
Recommended Setup:
2s Digital Build
- VTX: DJI O4 or Walksnail Mini 1S Lite
- AIO: JHEMCU G474 or HappyModel Crazy F411
- Motors: T-Motor 1103 or HGLRC/RCIP 1202.5 11000kv
- Battery: 450-550mah 2S
- Props: Gemfan 2023
2S Analog Build
- AIO: JHEMCU G474 ELVTX or HappyModel X12/X14
- Camera: BetaFPV C03
- Motors: T-Motor 1103 or HGLRC/RCIP 1202.5 11000kv
- Battery: 450mah 2S
- Props: Gemfan 2023
