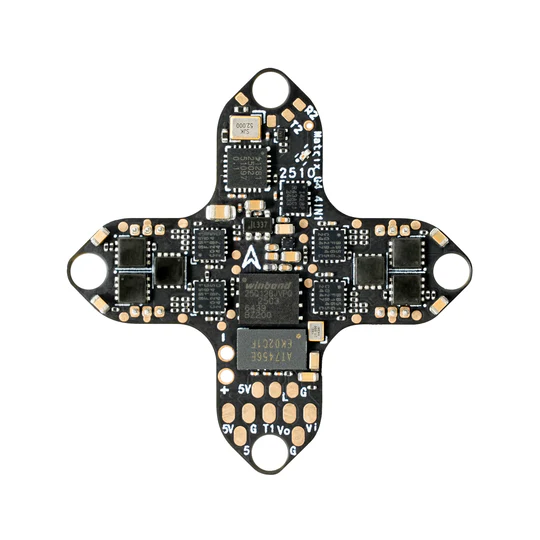

BetaFPV Matrix 1S Brushless G4 Flight Controller (4IN1)

• Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.

Bullet Points

• Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD.
• STM32G473 MCU: 55% faster processing than F411 for responsive tuning.
• Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
• Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
• Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.
• Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external RX soldering pads for protocol flexibility.

Specifications:

FC

• MCU: STM32G473CEU6 (168MHz)
• Gyro: ICM42688P
• Blackbox Memory: 16MB
• Sensor: Voltage & current
• BEC: 5V/3A
• UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
• UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
• ESC: 12A continuous
• RX: Serial ELRS 2.4GHz (V3.4.3)
• FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
• USB Port: SH1.0-4Pin
• OSD: AT7456E (4IN1 version only)
• HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
• Motor Plug: JST1.25-3Pin
• Battery Connector: BT2.0
• Mounting Size: 25.5mm x 25.5mm
• Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
• Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)

ESC

• Power Input: 1S only
• Current: 12A continuous, 18A peak
• ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
• Digital Signal Protocol: DSHOT300, DSHOT600

	Matrix 1S 3IN1	Matrix 1S 4IN1	F4 1S 5A AIO
MCU	STM32G473CEU6		STM32F411CEU6
MCU frequency	168MHz		108MHz
Gyro, max. sampling rate	ICM42688P, 8KHz		BMI270, 3.2KHz
ESC	12A continuous		1S, 5A
Blackbox memory	16M		8M
OSD	–	Betaflight OSD: AT7456E
RX	Onboard Serial ELRS 2.4GHz
Motor plug	JST1.25
Weight	3.8g	3.6g	3.64g

Diagram

Ultra-Resilient BEC

1S whoops often fly at voltages as low as 3.3V and digital image transmission requires higher current, placing significant demands on the BEC. To meet these challenges, an advanced BEC has been developed, capable of delivering over 3A of current at ultra-low voltages down to 2.85V. This ensures stable image transmission even in critical situations. While flying to such low voltages isn’t recommended, this innovation provides pilots with a greater chance of safely recovering from unexpected situations.

Enhanced Continuous 12A ESC

Whether powering digital HD systems or high-performance analog builds, 1S whoops demand ESCs that won’t flinch. Our engineers exceeded expectations, delivering a robust ESC with 12A continuous output and 18A peak capacity on the iconic “cross” flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights.

Individual Power Supply for IMU

Unlike traditional shared power supply designs, the Matrix 1S FC features an independent 3.3V LDO power supply exclusively for the IMU. This innovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issues—ensuring unmatched stability during every flight.

Whoop-ready Installation

Equipped with convenient motor plugs and a SH1.0-6Pin HD digital port, the 3IN1 version allows for a completely solder-free installation and maintenance process. Spend less time building and more time flying HD whoops.

The 4IN1 version retains soldering pads for external analog RX, giving you protocol freedom while reducing voltage ripple interference for cleaner video signals.

Serial ELRS 2.4G RX

Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELRS V3.0 with no need to flash Betaflight flight controller firmware. Enter binding status by power on/off three times.

• Plugin and unplug the flight controller three times;
• Make sure the RX LED is doing a quick double blink, which indicates the receiver is in bind mode;
• Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;
• If the receiver has a solid light, it’s bound.

The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is the way to update the Serial ELRS 2.4G RX firmware through passthrough.

• Plug in your FC to your computer, connect to ExpressLRS Configurator instead of Betaflight Configurator;
• Choose target “BETAFPV 2.4GHz AIO RX”;
• Flash using the BetaflightPassthrough option in ExpressLRS Configurator.

How to flash firmware via Wi-Fi here.

Betaflight Firmware and CLI

Betaflight official developers recommend using version 42688 of the gyroscope, and many issues with ICM42688 have been fixed in version 4.5.0. Please learn more from version 4.5.1 and 4.5.2.

Matrix 1S Brushless Flight Controller (3IN1):

• FC firmware: Betaflight_4.5.1_BETAFPVG473, download the firmware and CLI dump file
• Reference link: https://github.com/betaflight/betaflight/releases/tag/4.5.1

Matrix 1S Brushless Flight Controller (4IN1):

• FC firmware: Betaflight_4.5.2_BETAFPVG473_V2, download the firmware and CLI dump file
• Reference link: https://github.com/betaflight/betaflight/releases/tag/4.5.2

IMPORTANT: The Matrix 1S 3IN1 and 4IN1 require different firmware – always verify your version before flashing to avoid performance issues.

Bluejay ESC Firmware

With BB51 ESC solution, Matrix 1S 3IN1 HD Brushless Flight Controller is based on A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware, it supports DSHOT300, DSHOT600, and even RPM filtering in Betaflight, offers 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and custom start-up melodies.

DO NOT flash the firmware with a shorter interval, otherwise, there will be a certain chance of stalling and burning the flight controller.

• ESC-Configurator: https://preview.esc-configurator.com/
• Download BLHeliSuite16714903
• Download the Bluejay ESC firmware, please choose A_X_5_96_v0.19.2.hex.

How to Use Serial Ports, Intergrated RX and VTX

UART3 is connected to the built-in serial ELRS RX. To release UART3, please remove the resistor. Additionally, Matrix 1S FC reserves 2 complete full-featured serial ports that can be used for external serial receivers, GPS, HD VTX, or other serial devices. Refer to the pictures below.
